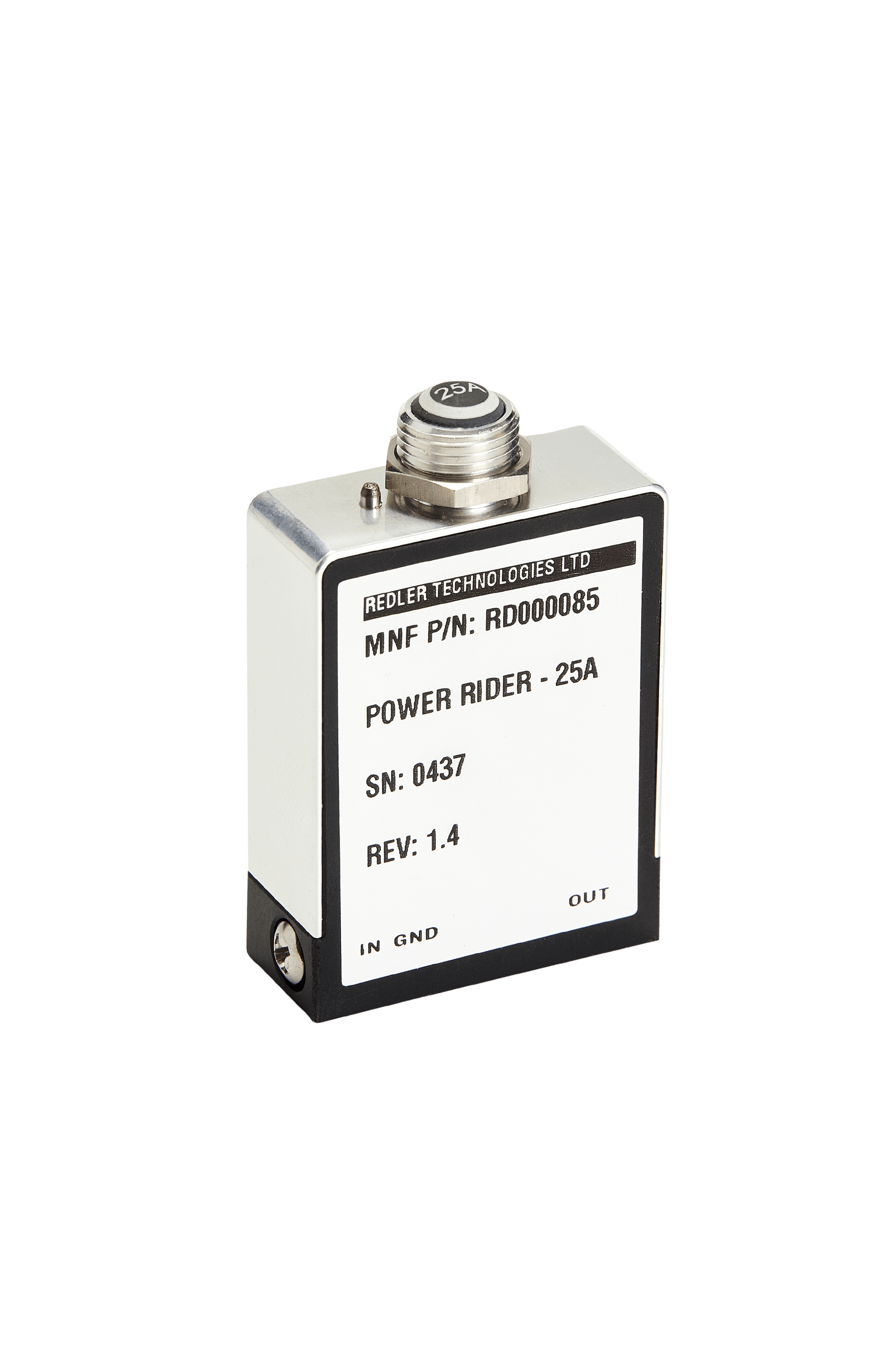

Power Rider 25A
Compact Smart Circuit Breaker for Standard Current Applications
The Power Rider 25A is a compact and versatile smart circuit breaker designed for standard current applications up to 25A. Offering the perfect balance of size, functionality, and protection capabilities, this intelligent device integrates seamlessly into various systems requiring reliable power management and protection with minimal space requirements.
Technical Specifications
Technical Documents
Documents Not Available
Technical documents for this product are currently being prepared. Please contact our team for immediate access.
| Specification | Details |
|---|---|
| Current Rating | Up to 25A continuous operation |
| Voltage Range | Operating range: 9-48 VDC (absolute max 55 VDC) |
| Communications | CAN bus (50 kbs and up to 1M) and RS485 interfaces |
| Protection | Overcurrent, short circuit, thermal, and reverse polarity protection |
| Monitoring | Real-time current, voltage, and temperature monitoring with event logging |
| Temperature Range | -40°C to +85°C operating temperature |
| Dimensions & Weight | 61.35 mm x 38.6 mm x 16 mm , 45 g |
Key Features
Compact Design
Space-efficient form factor ideal for installations with limited space
Intelligent Protection
Advanced algorithms for precise overcurrent and short-circuit protection
Configurable Operation
User-definable parameters for trip points, timing, and reset behavior
Status Monitoring
Real-time monitoring of operational status, current flow, and voltage levels
Network Integration
Integrates with system controllers via standard communication interfaces
Energy Efficiency
Low power consumption and minimal heat generation during operation
Key Applications
Designed for mission-critical performance across diverse applications
Industrial Robotics
Manufacturing and assembly line robotic systems
Electric Vehicle
Battery electric vehicles with advanced power management
Telecom Infrastructure
Base stations and network equipment requiring reliable power
Data Centers
Mission-critical server infrastructure and cloud computing
HVAC Systems
Heating, ventilation, and air conditioning control systems
Related Products
Ready to Enhance Your Power System?
Contact our team for additional details, custom configurations, or to request a demonstration of the Power Rider 25A.
